Persistence mode- Lissajous

PostPosted: Sun Jan 03, 2021 5:29 am
by sy@syclotron.com
Is there a way to run a Lissajous in Persistence mode? I'd like to have the DUT response to a complex waveform map (V1 and V2) onto an XY plane for a visual capture of all the points that it traces out.

Thank you!

Re: Persistence mode- Lissajous

PostPosted: Wed Jan 06, 2021 1:04 am
by VirtinsTech
Persistence mode is currently not supported for Lissajous Plot. We may add this feature in the next software update as it seems to be useful for some applications. Thank you for the suggestion.

Re: Persistence mode- Lissajous

PostPosted: Wed Jan 06, 2021 7:04 pm
by sy@syclotron.com
Mille grazie!

Re: Persistence mode- Lissajous

PostPosted: Tue Feb 16, 2021 3:03 pm
by VirtinsTech

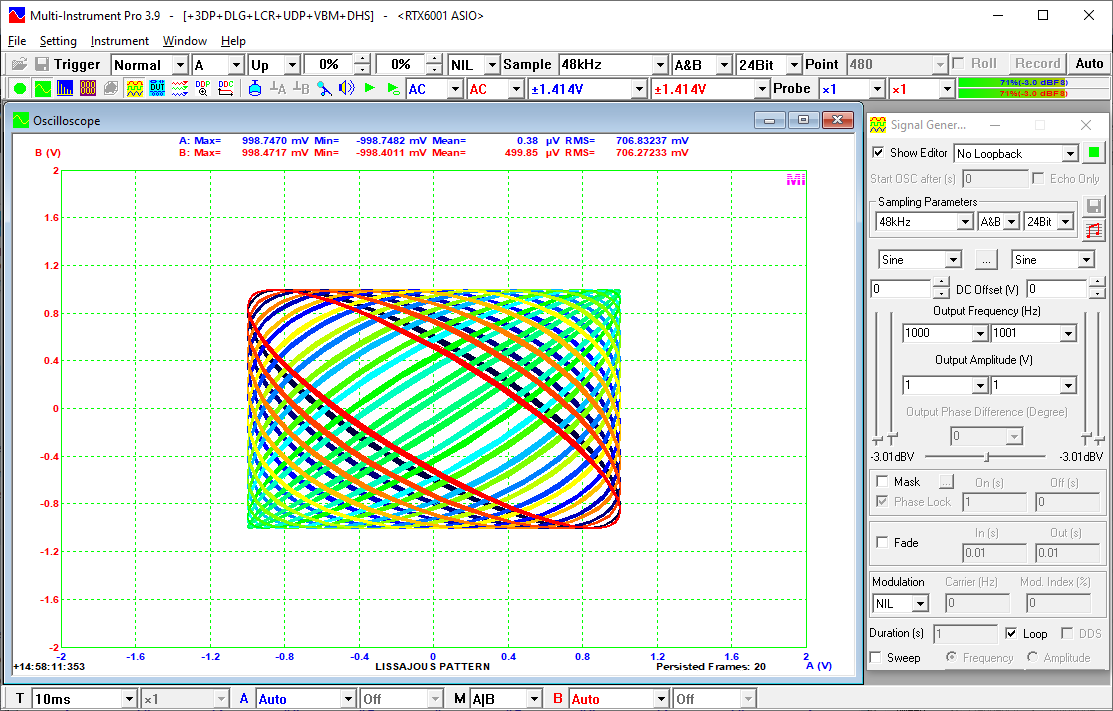

This function has been implemented in V3.9.4.
